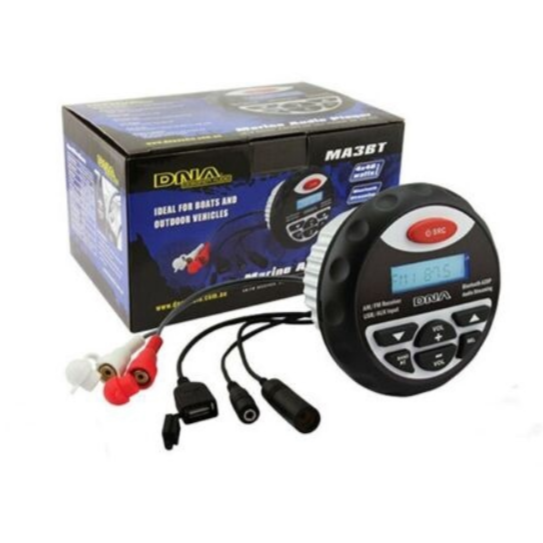

DNA Audio MA3BT Marine audio player

Plays MP3, WMA and FLAC (16 bit) audio formats from USB flash drive up to 16gb in size

Rear Audio Aux Features:
3.5mm Stereo audio input socket from the rear for portable MP3 players, iPods, iPhones etc

Rear Line Output Features:

2 x RCA sockets from the rear for connection to an external amplifier

High Power:

Featuring a high powered 4 channel 160 Watt (4 x 40W peak) amplifier for wiring of up to 2 pair of speakers

Display & Buttons:

Designed with a high definition positive LCD display and illuminated control buttons this provides optimal visibility under the toughest conditions, day or night.

General Features:

• Waterproof face for marine conditions

• 160 Watts peak power (4 x 40 Watts MAX output)

• High definition white / blue positive LCD display

• Rubber tactile action control buttons (7 Buttons)

• Voltage: 12VDC

• Unit colour: Black and silver

• Solid aluminium chassis

Size:

• Dimensions: 104mm diameter x 87mm deep

• Mounting dimensions: 80mm cutout hole diameter x 70mm depth for clearance

Marine features:

• Conformal epoxy coating on all PCB circuit boards to prevent damage from high humidity and salt

• IP67 Waterproof rated

Package includes:

• Radio / MP3 unit

• 3.5mm stereo socket AUX flylead on rear

• 2 x RCA sockets from the rear for connection to an external amplifier (1 Volt)

• Antenna flylead on rear

• Power and speaker wiring harness

• Aluminum U shape mounting bracket with nuts
